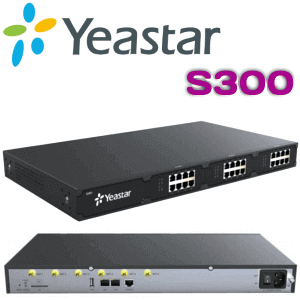

Yeastar S300 IP PBX



Yeastar S300 IP PBX

Yeastar S300 IP PBX delivers enterprise-class IP telephony services with a base configuration that supports 300 users and can be expandable to 500 users. Yeastar  S300 grows with you business and supports up to 24 analog ports, up to 24 BRI ports, up to 3 E1/T1/PRI ports, and up to 6 GSM channels. S300 Supports D30 Module of increasing the Capacity and EX30 PRI Module. Mypbx S300 having 3 chasis expansion card slots and can be used as modular solution by your choice of cards.

Description

[vc_row][vc_column][vc_column_text]

YeastarS300Includes carefully

YeastarS300gives 2 10/100/1000Mbps RJ45Networkt ports and also 3 Chasis growth card slots.This shelf moutable IP Telephone system could be shelf place and also having the simple to make use of brand-new Yeastar arrangement INTERNET GUI. The built-in meeting bridge could be extremely handy for lots of companies.YeastarS-Series sustains telephone call recording that is extremely efficient incase you wish to keep track of business task or utilize it for training purposes.The GUI Basesd call videotaping providing you accessibility essentially anywhere from word. The very same relevant for built-in telephone call information documents also. The Yeastar S Collection additionally consist of the fetures like, established the system’s e-mail to send out voicemail to email, sharp occasion e-mails, fax to email, email to TEXT and also TEXT to email.

Yeastar MyPBX S300 Dubai

YeastarS300IP PBX REQUIREMENTS

Customers 300(approximately 500)
Max Simultaneous Calls 60(approximately 120) *
Max Analog Ports 24
Max BRI Ports 24
Max Mobile Ports 6
Max E1/T1/J1 Ports 3
VoIP Trunks 100
Method SIP (RFC3261), IAX2
Transportation Method UDP, TCP, TLS, SRTP
Codec G711(alaw/ulaw), G722, G726, G729A, GSM, Speex, ADPCM, iLBC, H263, H263P, H264, MPEG4
DTMF In-band, RFC4733, RFC2833, SIP DETAILS
LAN 1 × 10/100/1000Mbps
WAN 1 × 10/100/1000Mbps
IP Provider Fixed IP, DHCP, VPN, Firewall program, VLAN, DDNS, PPPoE, QoS, Fixed NAT, STUN
Voicemail
Firewall program Yes
T.38Fax Yes
Application Facility Yes
Exterior Storage space SD Card & & 2.5 inch SATA HDD
USB 1
Power Air Conditioning 100-240V 50/60HZ 1.8 A max
Dimension (L x W x H) (centimeters) 44x 25.2 x 4.4
Weight 2.6 kg
Power Intake 6.2-591 W
Setting Procedure Variety: 0 ° C to 40 ° C,(******************************************************** ) ° F to 104 ° F; Storage space Variety: -20° C to 65 ° C, -4 ° F to 149 ° F; Moisture: 10-90% non-condensing
Installing 1U Rack-mount
